The fastest single needle bag closing machine (2700 rpm) for all kinds of filled bags. Well-balanced rotational parts ensure very little vibration. Ideally suited for use with height-speed bag filling lines where conveyor speed of 25m/min.
| Specifications | |
|---|---|
| Max Speed | 2500rpm |
| Seam | Double Thread Chain Stitch |
| Stich Width | 7-10.5mm |
| Bag Material | Paper / PP |
| Thickness | Paper bag 4P with a tuck |
| Cutter | Automatic crepe tape cutter |
| Needle | DR-H30 #26 |
| Oiling | By Hand – Oiler |
| Oil | Tellus #32 |
| Weight | 41.0kg |
| Feature | Double-needle of DS_9C |
| Related Machines | A type (Conveyor), Automatic Bagging Machine, A1-PB |
The fastest single needle bag closing machine (2700 rpm) for all kinds of filled bags. Well-balanced rotational parts ensure very little vibration. Ideally suited for use with height-speed bag filling lines where conveyor speed of 25m/min.

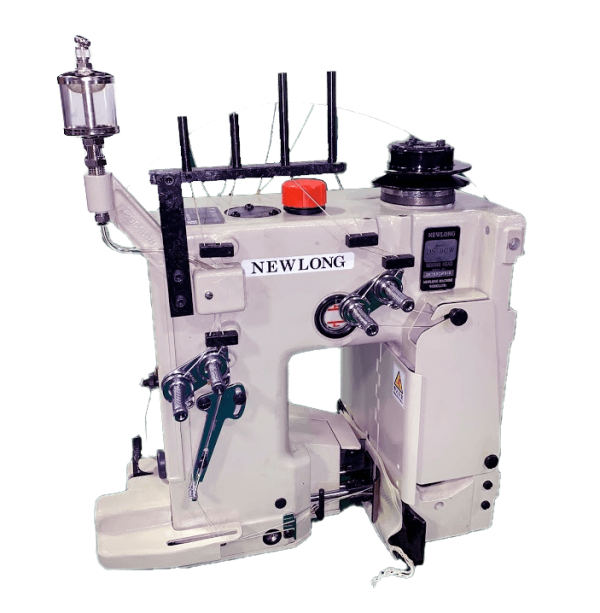

| Settings | DS-9CW remove | DS – 2 (II) remove | DHR-6 remove | DR-7UW remove | DKN-1 remove | 7-32W05201 Washer remove | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Image |  |  |  |  |  |  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Description | The fastest single needle bag closing machine (2700 rpm) for all kinds of filled bags. Well-balanced rotational parts ensure very little vibration. Ideally suited for use with height-speed bag filling lines where conveyor speed of 25m/min.
| The Newlong DS-2II plain sew, single needle bag closing machine is used for closing of all kindsof filled bags made of multi-wall paper, PP/PE woven cloth, jute, cotton bags etc
|
Safety Stitch Machine Head for Sewing Jumbo Bags (Two Needle, Upper-Lower Feed, Flat Bed, Four Thread Safety Stitch Machine)
|
2-Needle Chain Stitch Machine Head for Sewing Jumbo Bags (Two Needle, Upper-Lower Feed, Flat Bed, Four Thread Chain Stitch Machine)
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
